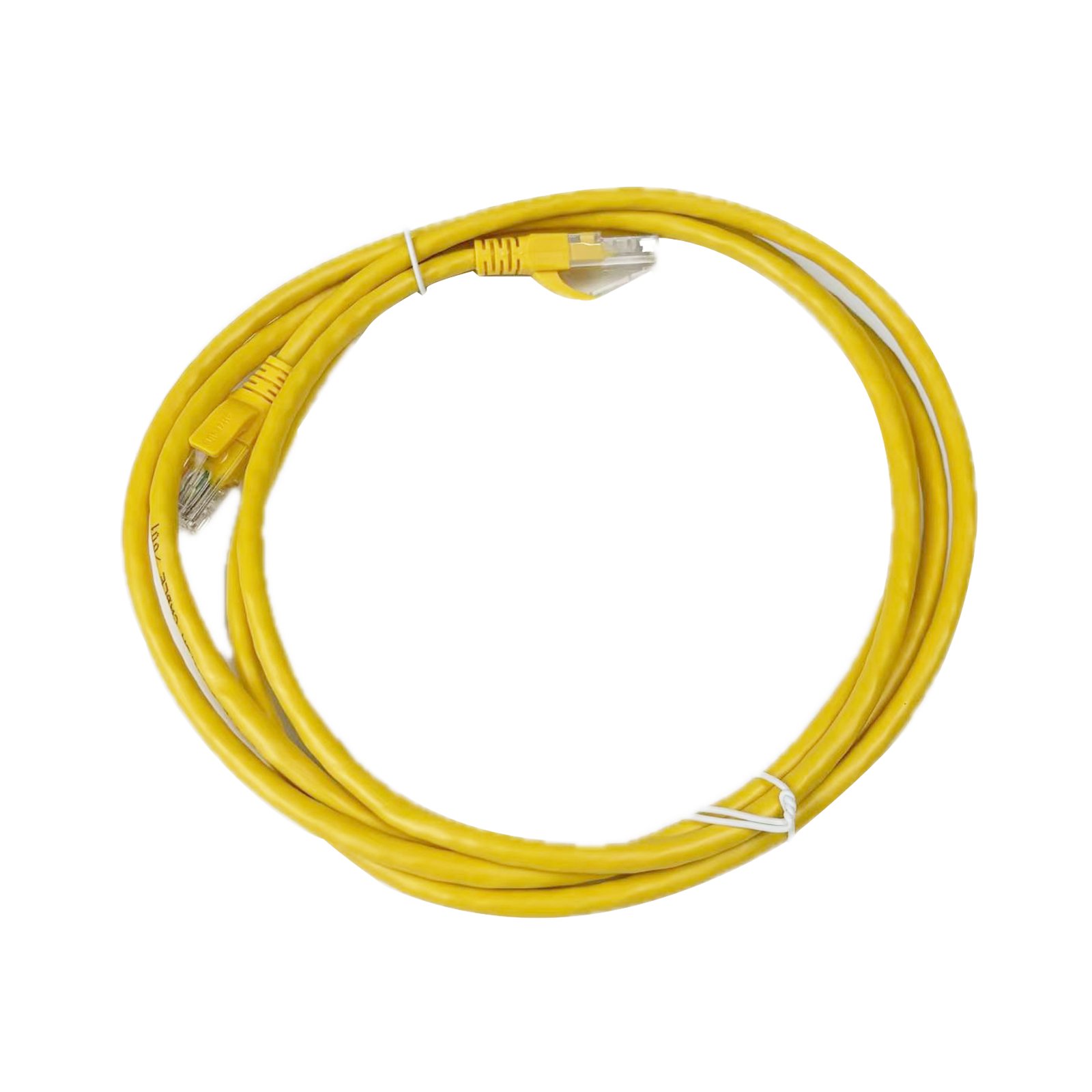

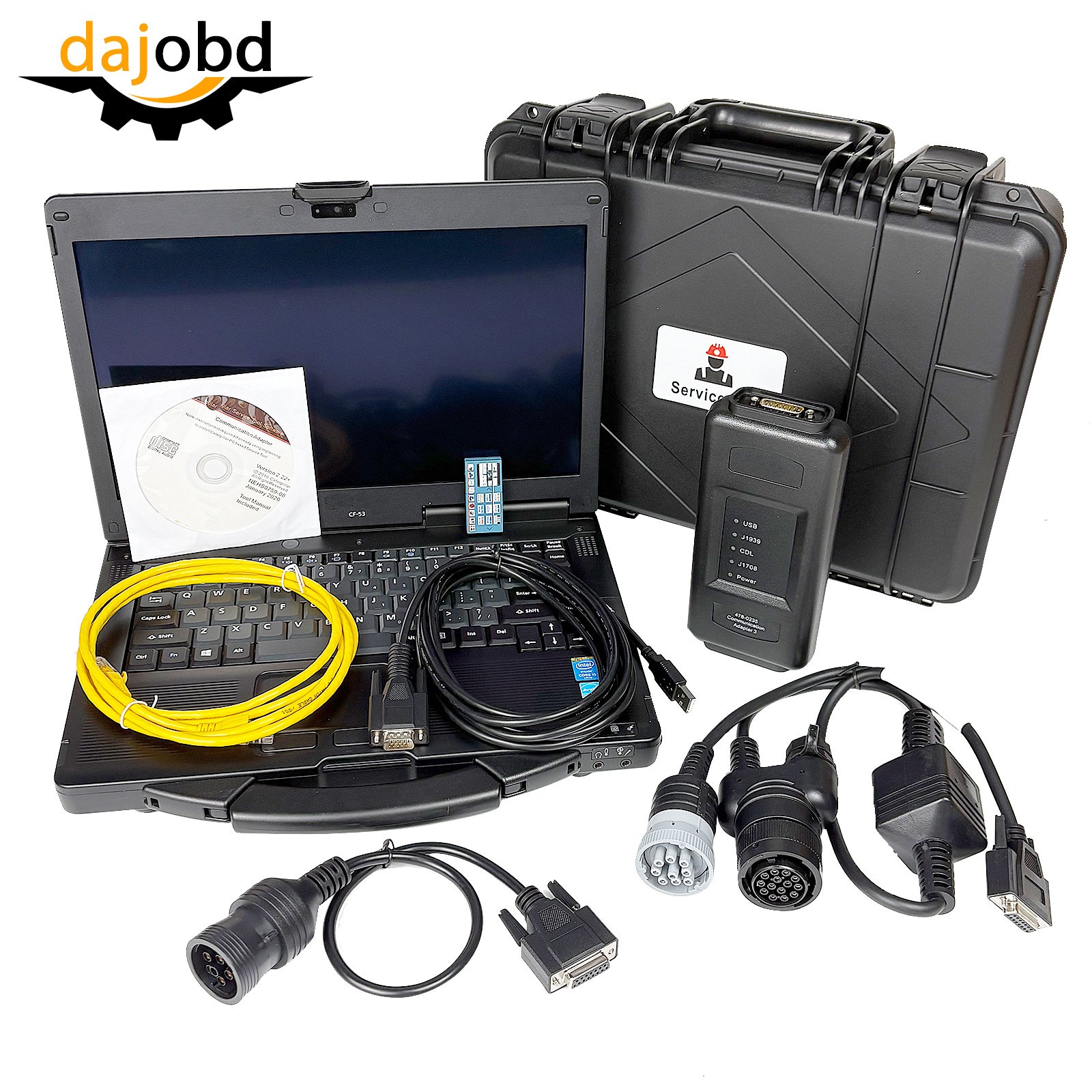

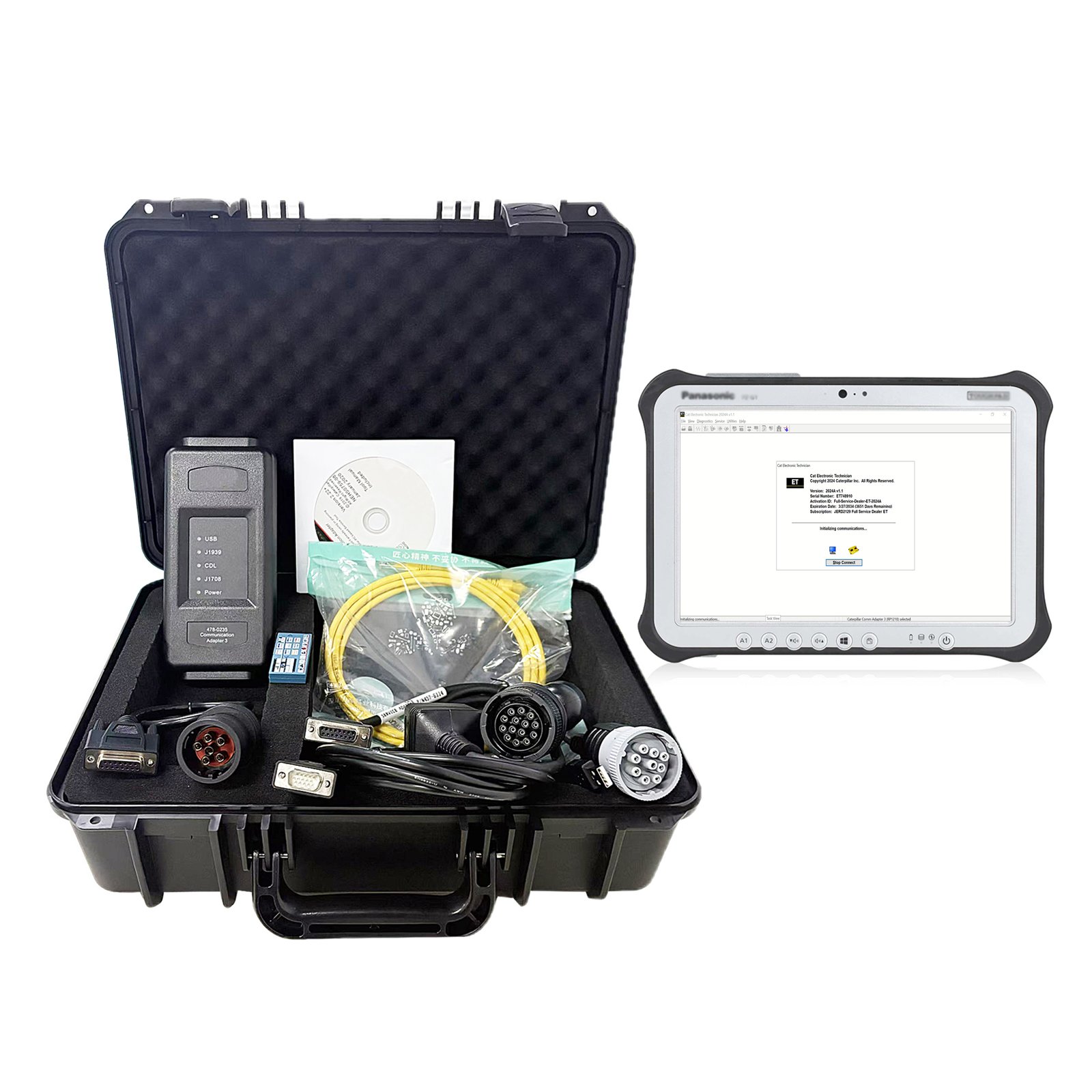

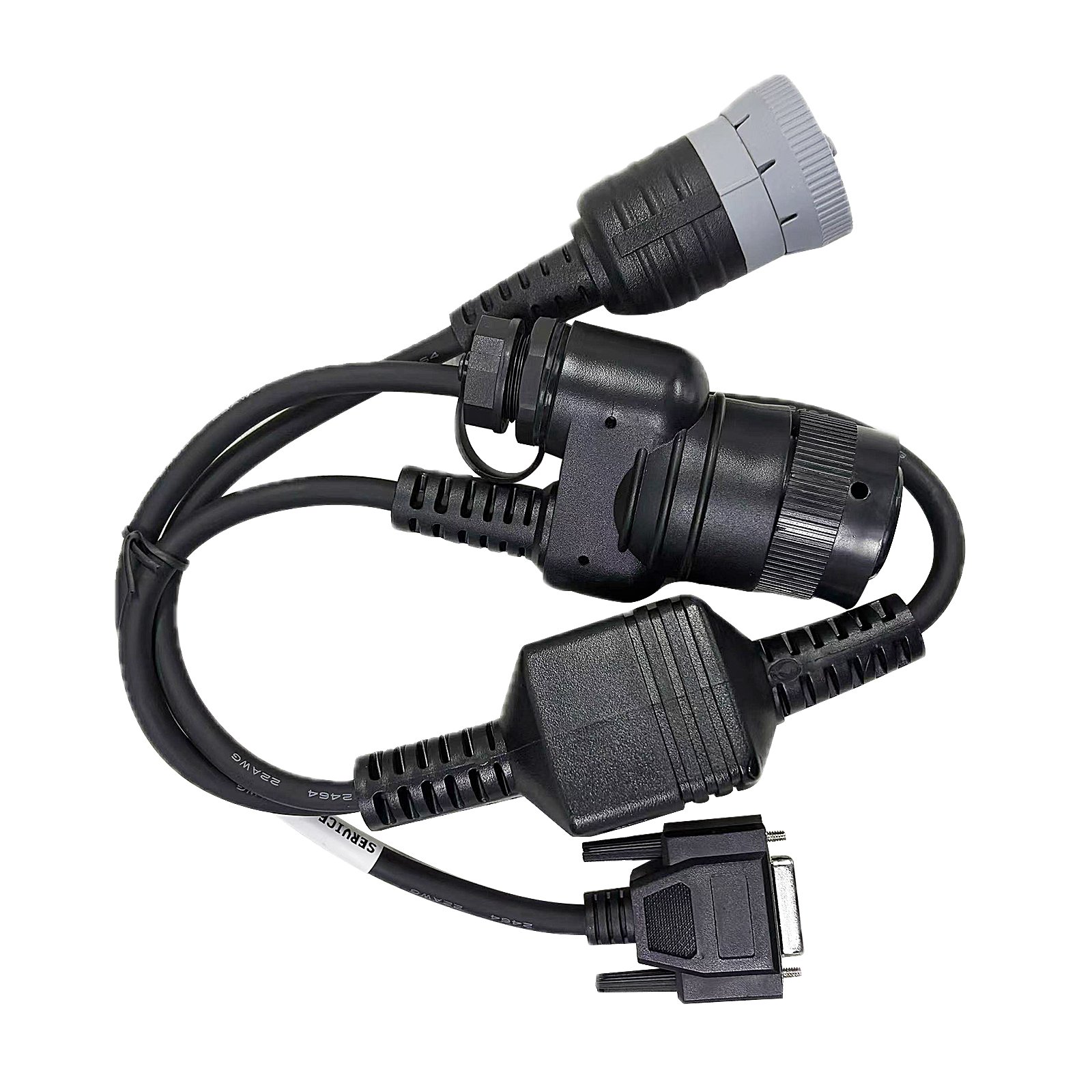

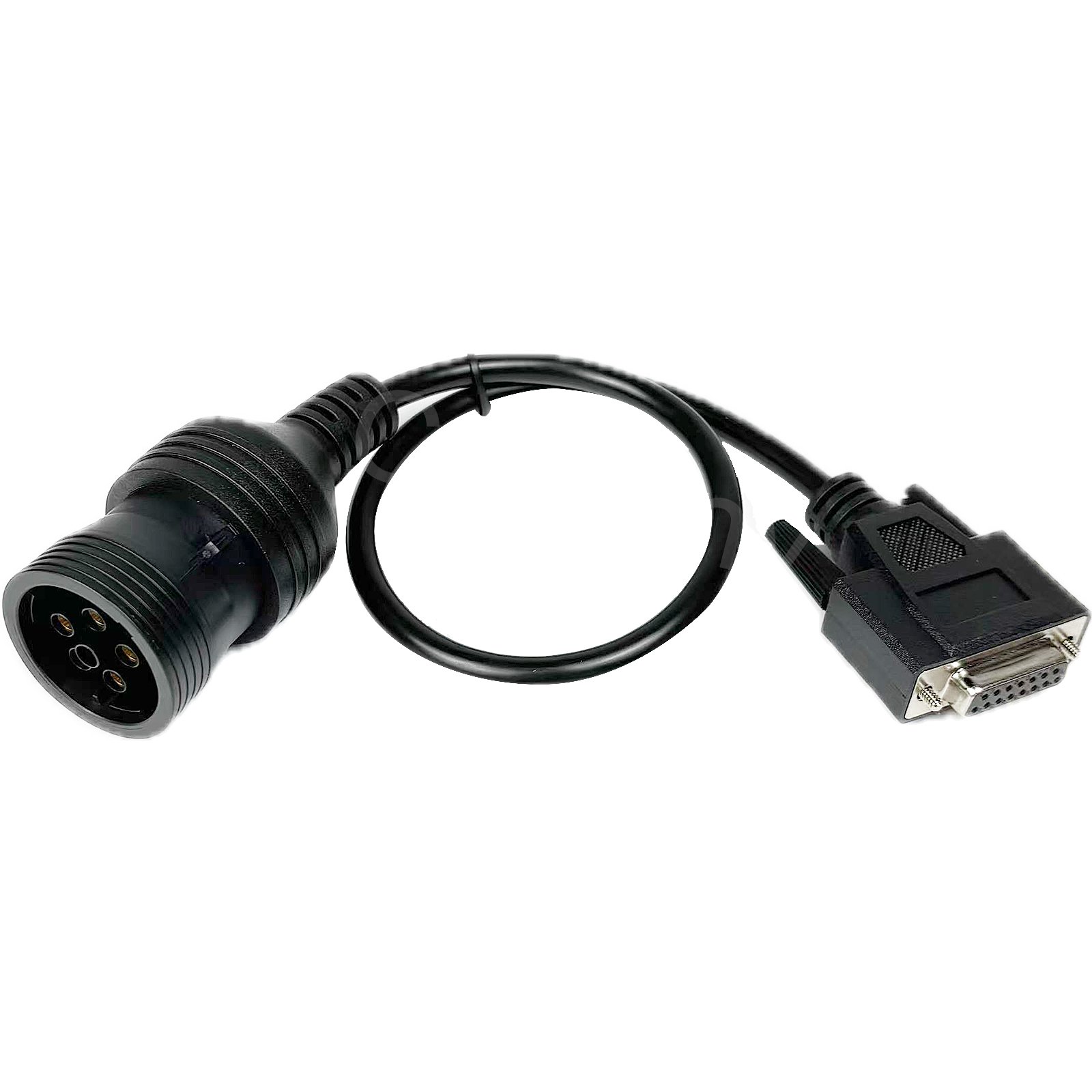

Original CAT ET4 Caterpillar ET 4 2024A CAT Truck Diagnostic Tool Communication Adapter 4 with Ethernet Cable/Program Cable

Description

Original CAT ET4 Caterpillar ET 4 2024A/2019C CAT Truck Diagnostic Tool Communication Adapter 4 with Ethernet Cable/Program Cable

Note :

CAT 2020-2023 software version include the 10 factory password generator. When you push the Ctrl+F2 shortcut button,then can open the 10 bits of the password generator.

Caterpillar electronic technician 2024A (replaces CAT ET 2024A, 2021C, 2021B, 2021A, 2020A, 2019C, 2019B) with WinFlash future is an updated version of the caterpillar dealer diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Caterpillar Engines and Machines.

2024A Caterpillar Electronic Technician softwarer With CAT ET 3 Cat caterpillar adapter 3 support caterpillar diagnostic till 2024.

Caterpillar ET 2024A (replaces CAT ET 2019C,2021B) Electronic Technician Diagnostic Software ：
Brand: Caterpillar
Region: WorldWide
Support Multi-languages：English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish  Compatible OS: Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit
Support All cars of CAT

Support car list of CAT Caterpillar ET Diagnostic Tool :

With the CAT Diagnostic Tool, you can:
View active and logged diagnostics
View events where irregularities occurred and were logged by the ECM
View the status of a group of parameters (temperatures, pressures, etc.) simultaneously
Record and log performance data
Graph a group of status parameters

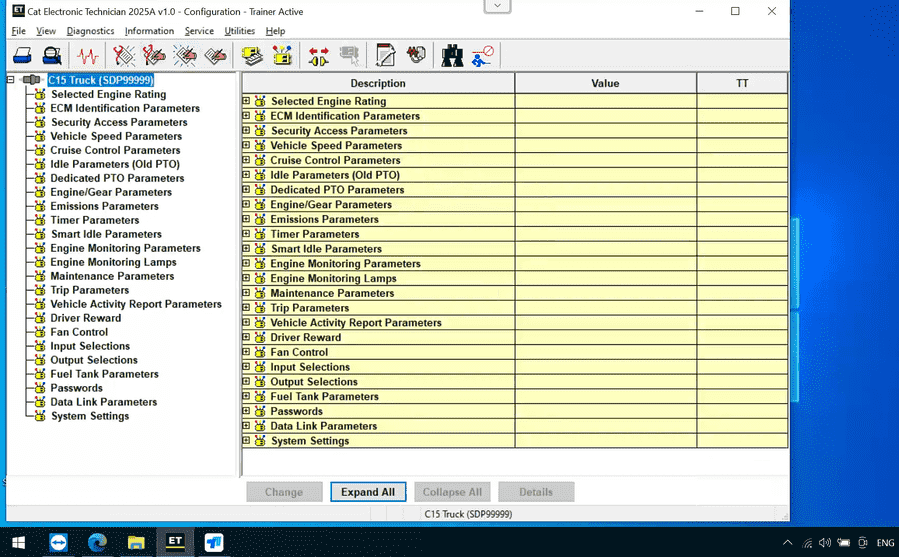

View the current configuration of an ECM
Change ECM configurations
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results
For some machine and engine products, additional functionality has been included with the service tool program

Product Description

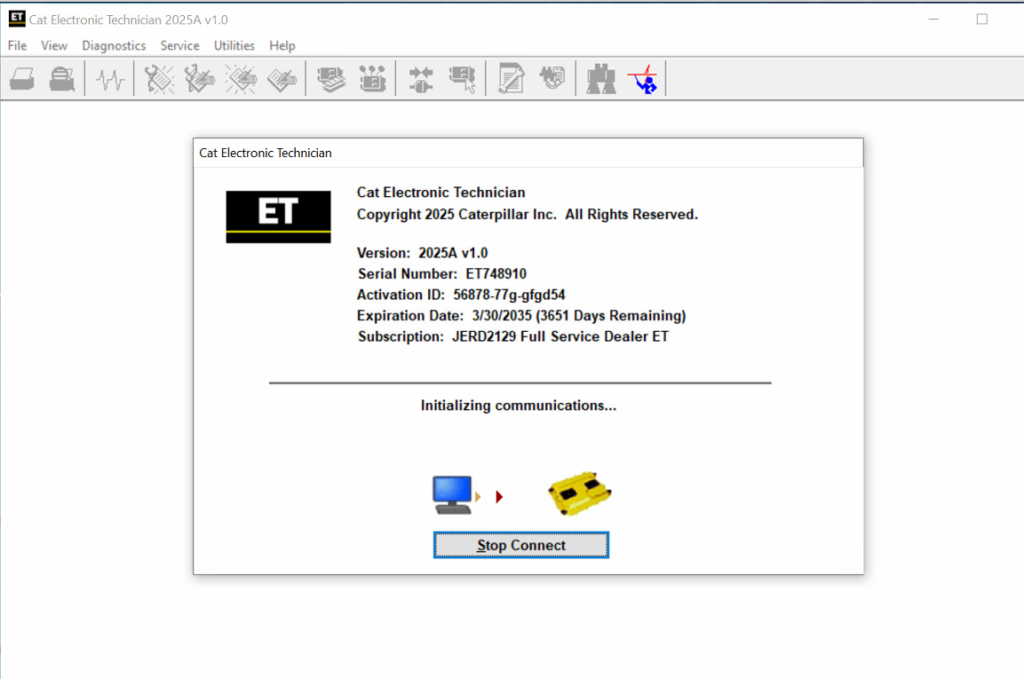

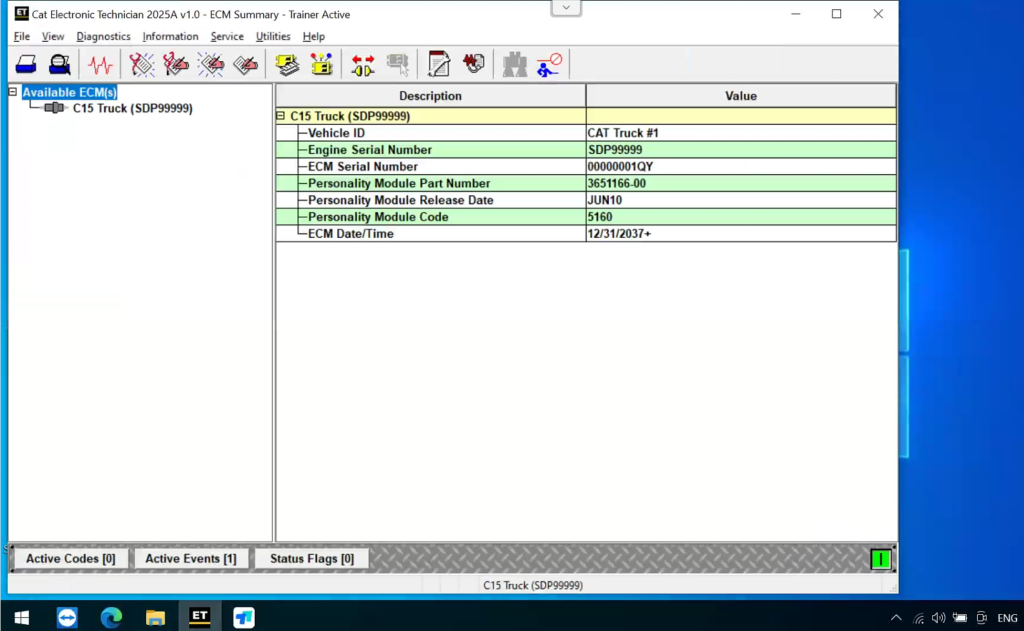

CAT Caterpillar ET Diagnostic Tool from Caterpillar provide the capability to access Electronic Control Modules (ECMs) from a personal computer. Many job-critical tasks can be performed with an electronic service tool. The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clear logged diagnostics, display the current configuration of an ECM and much more. The service tool works with a communication adapter to allow connection to an ECM. A graphical interface makes this software quick to learn and easy to use. A separate pull-down menu for each function enhances the "ease of use." The version and identification of the ECM is automatically retrieved and is displayed on a summary screen when the program is started. Diagnostic tests and calibrations can also be performed.

CAT Caterpillar ET Diagnostic Tool enable service technicians to reprogram ECMs, reconfigure control system parameters, fine tune performance or diagnose the root cause of a failure the first time. These powerful tools allow service personnel to display and analyze vital performance and health information from any system quickly and accurately. The service tool communicates with any system using ATA (J1708), J1939 or the Caterpillar proprietary data link networks. The service tools provide information and features needed to help a technician diagnose problems and perform repairs and to customize and personalize the operation of a product. By allowing customers to design flexibility and configurability into a product, Caterpillar service tools stretch beyond the capabilities of preprogrammed ECMs or onboard display systems.

Features
Display, graph and log status parameters.
Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.
View active diagnostics and clear logged diagnostics. View events where irregularities have occurred and have been logged by the ECM.
Perform calibrations to enhance performance of the ECM.
Customize the ECM with application-specific settings.
Over 100 custom Diagnostic, Information and Service features including:
- 2D and 3D Histogram plotting capability (engine software
support required).
- Custom Status screen groups
- Snapshots (Download and display snapshot data recorded by the
ECM)
- Configuration Aid that allows upload/download of same
configuration to multiple control modules

Customised Service Tool Options
Customized service tool name
Customized graphics for the splash screen and icons
Customized installation
Aftermarket differentiation, i.e., the tool for one customer does not work on the product of another customer.
Licensing options for customer management
Flash programming of the ECM(s)
Training demonstration allows familiarity with the tool's primary functions without connecting to ECM(s)
Perform customized diagnostic tests to identify harness problems, cylinder or component failures (Automatic Cylinder Cutout with cylinder to cylinder fueling comparison)

Caterpillar ET Software Function:
This diagnostic app allows you to:
View active and logged diagnostics.
View events where irregularities occurred and were logged by the ECM.
View the status of a group of parameters (temperatures, pressures, etc.) simultaneously.
Record and log performance data.
Graph a group of status parameters.
View the current configuration of an ECM.
Change ECM configurations.
Perform diagnostic tests.
Perform calibrations.
Print reports and diagnostic results.
Please keep in mind that some ecm settings for example, speed limit requires factory password. The factory password generator is not included in this application

What’s New – 2024A
Automatic Product Status Report (PSR) Upload
The service tool includes a new tool that automatically uploads Product Status Reports.   The tool scans for newly generated Product Status Reports and uploads them when an internet connection is available.   The default is that automatic report uploading is enabled.   The Preferences dialog has an option to disable the tool.

What’s New – 2024A
ECM Naming Changes
Certain ECMs connect to the service tool over two data links at the same time.   The service tool shows a message popup when the ECM is only detected on one link.   The service tool has been changed to add the text **INCOMPLETE** in the ECM name when the connection is incomplete.   Service tool features that display a connection icon also use a new icon for an incomplete connection.

What’s New – 2024A
No significant new features or feature enhancements

What’s New – 2024A
CEOS Fleet Configuration File TOP
A CEOS (Customer Electronic Option Selection) Fleet Configuration File can be created/modified for an engine using the Service Tool.   This is available in connected and disconnected mode.

Error When Launching Service Tool
There is a Microsoft issue with upgrading libraries during an installation involving certain versions of the C++ redistributable.   After a successful service tool installation, when trying to run the service tool for the first time, one of the following errors may occasionally appear: “The entry point could not be located in api-ms-win-crt-runtime” or “The program can’t start because mfc140u.dll is missing from your computer.”   If either of these messages is displayed, please let us know and we will send you to step by step troubleshooting guide.   This procedure requires administrator rights.

Service Tool License Corruption Issues with Windows 10 Updates
Windows 10 updates 1709 and 1803 will corrupt service tool licenses.   Future Window 10 updates may do the same

If either of license error messages is displayed, please let us know and we will send you to step by step troubleshooting guide.

What’s New – 2024A

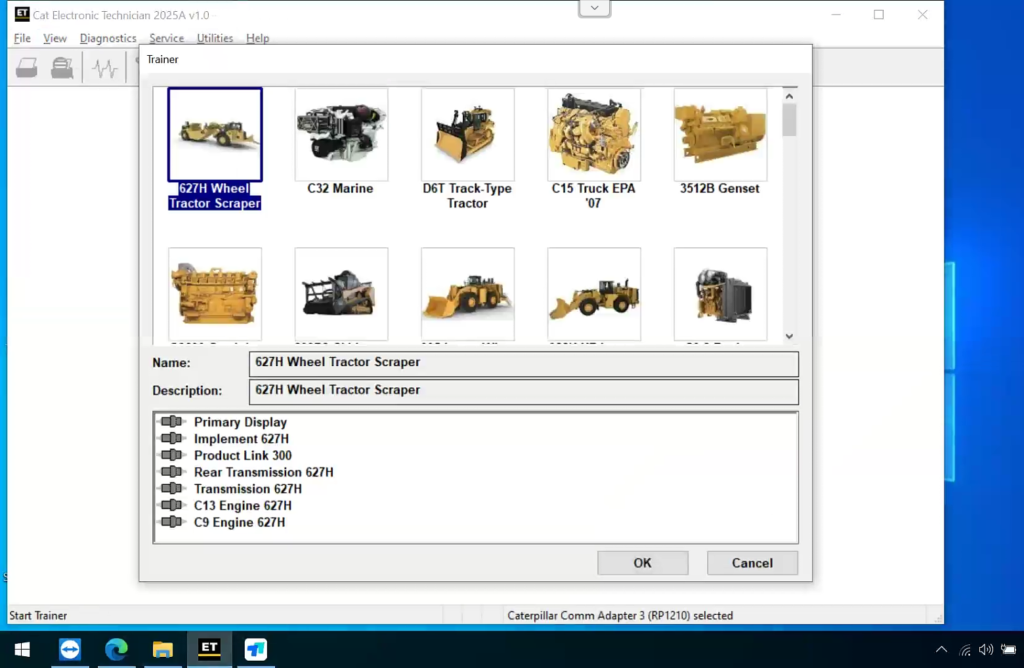

Trainer Update – 988K XE Wheel Loader
The 988K XE Wheel Loader has been added to the Trainer application.

What’s New – 2024A
Preferences Option to Save a Product Status Report to PDF

The Preferences dialog for the Product Status Report has changed.    The dialog contains a new checkbox to automatically save a Product Status Report as a PDF file when the report is created.    The service tool will continue to automatically save Product Status Reports as an XML file.

What’s New – 2024A
Product Status Report Updates
The Product Status Report has been updated to include certain history features supported by the ECM, such as the after-treatment Regeneration History and the Service Test History.
Winflash Screen Update
The screen for the Winflash feature has been updated.    A new Expand All button opens all sections of the screen to show all details for ECMs detected by WinFlash.    A new Collapse All button hides all sections of the screen, except for header rows showing detected ECM names.
